Important Security Considerations
To ensure smooth operation, please coordinate with your IT team to:
- Whitelist the PathCam camera and its SD card to prevent security restrictions.
- Whitelist PathCam.com to enable access to software licenses, updates, training materials, and support resources.
The PathCam Imaging System operates within a closed-loop environment, preventing external access to captured images and video files. For compliance, the host facility is responsible for managing user credentials, auditing usage, and ensuring proper access controls.
Workstation/PC Requirements
To ensure optimal performance, please review the following specifications:
- Minimum Specs (for basic operation):
- Windows 10 OS or higher, 16 GB RAM, USB 2.0 Port.
- Designed for image capture and annotation only, with long-term storage handled via network folders.
- Recommended Specs (for advanced use with multiple applications running concurrently):
- Windows 10, 11, or Enterprise OS, 32 GB RAM, Intel Core i7 (11th Gen) processor, 1 TB hard disk.
- USB 3.2, USB-C, Ethernet port, Iris XE or greater graphics card, DDR4 or greater.
- Powered USB Hub (10-16 ports) to ensure consistent power for peripherals.
Other Required Devices
- Monitor: 21” or larger touchscreen with VESA compatibility and HID compliance (drivers not required).
- Keyboard and Mouse: Washable, medical-grade devices designed for sterility and easy cleaning.
We’re happy to provide quotes for these devices if needed.
This software enables seamless image and video storage into pre-selected network folders or directly into your Electronic Record Keeping System. Key features include:
- Standard file formats (PNG/JPEG) for easy IT integration.
- TWAIN-supported LIS systems for direct image import.
- Barcode Filename entry with time/date stamping.
- Advanced annotation tools, measurement capabilities, and customizable grids.
- Compatibility with 3rd-party publishing, video conferencing/editing software.
- Customizable foot pedal and voice command support (optional accessories).
Enhance Your PathCam Experience with Add-On Options
While exploring the 60-day PathCam Trial, you have free access to review the Voice Command feature under Settings. However, this feature will only remain available beyond the trial if purchased separately. For optimal performance, pair a headset through Settings > Mic Tab to experience its precision. If enabled without a paired headset, it may respond to background noise, triggering snapshots unexpectedly.
For additional hands-free functionality, consider the Foot Pedal Command Add-On, which can be used alone or alongside Voice Command. When ordered, a four-pedal device will be shipped, preprogrammed for easy pairing, with commands assignable under Settings > Foot Pedal.
To further enhance your PathCam System, explore the following hardware, mounting options, and services:
Add-On Options
-
Hands-Free Accessories – Voice Command & Foot Pedal for seamless operation.
-
PathCam HD Camera – Crystal-clear imaging for live demonstrations and teaching; mounts on an adjustable arm opposite the sink for optimal visibility.
-

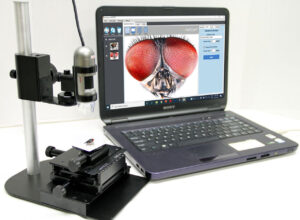

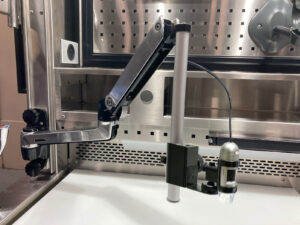

PathCam MICRON Camera – Compact, high-magnification (10x-140x) camera with LED lighting, ideal for detailed specimen analysis; mounts on an adjustable arm with a 1–9 inch working distance.
-
Standalone Software Licenses – Allows annotation and file management on additional PCs, independent of the grossing station.
-

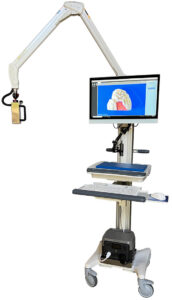

PathCam Mobile Imaging Station – A portable imaging solution designed for forensic and anatomical environments handling larger subject matter.
-

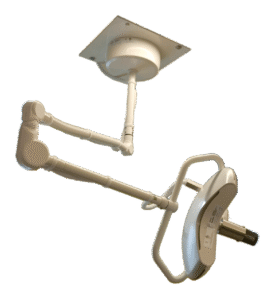

PathCam HD Camera with Sterilizable Surgical Light Handle Integration – Integrates with surgical light handles for enhanced flexibility in operating rooms.
-
Extended Warranty – Standard 1-year warranty with options to extend coverage by 1 or 4 additional years. Custom quotes available.
-
Standard Service Package – Includes onsite technical support and hardware/software training for the designated Super User, eliminating separate onsite service fees. Travel expenses vary by location.
-
Touchscreen Monitor – 21” LED Full HD Display (1920×1080) with 10-point multi-touch interactivity, integrated speakers, and multiple input options (DisplayPort, VGA, HDMI). VESA mount compatible. Custom sizes available.
-
Keyboard & Mouse – Washable, medical-grade peripherals designed for sterility and easy cleaning.
